paun_nl
Administrator
 Din: alexandria
Inregistrat: acum 17 ani
Postari: 2718
|
|
calculator Bp
_______________________________________
Reparatii tv !
tel.0729346286
|
|
| pus acum 16 ani |
|
paun_nl
Administrator
Din: alexandria
Inregistrat: acum 17 ani
Postari: 2718
|
|

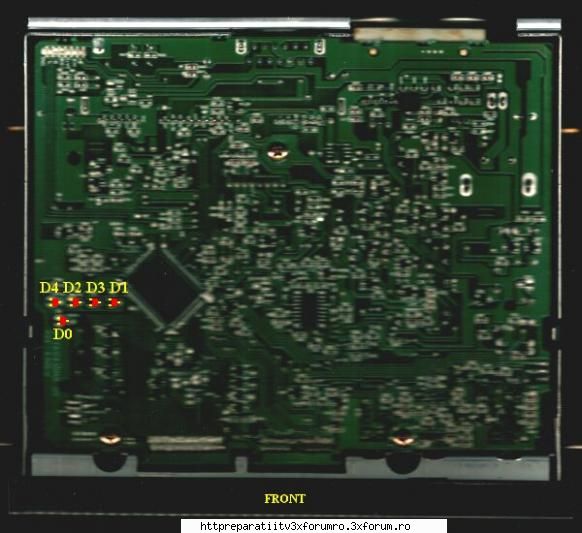

akf 4306
i se scot diodele d0,d1..d4 si i se anuleaza codul
51.1KB
_______________________________________
Reparatii tv !
tel.0729346286
|
|
| pus acum 16 ani |
|
paun_nl
Administrator
Din: alexandria
Inregistrat: acum 17 ani
Postari: 2718
|
|
un cod daca se poate
CAR 2003
GM020317552509
7 649 200 324
MULTUMESC FRUMOS!
_______________________________________
Reparatii tv !
tel.0729346286
|
|
| pus acum 16 ani |
|
paun_nl
Administrator
Din: alexandria
Inregistrat: acum 17 ani
Postari: 2718
|
|
Problem of Some AUDI Chorus and AUDI Concert Autoradio Models,
or "Delayed-Action Mine" from Blaupunkt Company
Autoradios equipped with standard details usually have a considerable reliability margin in comparison with "mass consumption" devices. So it caused our interest when in 1999 several AUDI Concert autoradios from Blaupunkt Company with the same defect (the volume control system became disable) were brought to our workshop. The initial analysis of this problem took us to an inauspicious conclusion. Only in one case the reason was a loosen screw of the volume control knob. In all the other cases the reason of the volume control disability was the failure of the internal non-volatile memory (EEPROM) of the system main microcontroller. To solve this problem we had to replace the chip by a different one. To our great disappointment those autoradios had a MC68HC05 Motorola microcontroller (main MCU) although it's universally recognized as a highly reliable one. By the way, this microcontroller is actually the most expensive electronic detail of the autoradio.
Having decided to find out the reasons of the internal non-volatile microcontroller memory failure, we have comprehensively investigated the circuit design and the microcontroller software. The results were quite unexpected! The main and the only reason of the microcontroller failure was its software error in the part where the non-volatile memory record was realized. The program slowly killing the microcontroller was "kindly" designed by Blaupunkt Company.
Let us consider this problem in details.
The internal non-volatile microcontroller memory (EEPROM) is meant for the storage of different data, which determine the system functioning. The memory data record is stored even if the voltage is completely off. Usually stored in the non-volatile memory are the tuner frequencies and all the control levels at the moment of turning off (to bring the device to the same condition as it was before the off-moment, even if it was disconnected from the car voltage). There can also be stored the beginning and the end of the tone control interval and other relocation "hardware-dependent" data. At the modern development stage of electronics the non-volatile memory always has the limit of the recording cycles amount. The EEPROM wears out (molecular changes take place) during the "write EEPROM cycle" procedure and equals 10000 cycles for the MC68HC05 family of microcontrollers as Motorola Company guarantees. The real possible amount can be several times bigger but this resource is limited anyway.
The generally used design practice is to take into account the EEPROM resource finiteness and to write current levels of volume, fader, balance and tone at the device-off-moment into the internal non-volatile memory. Instead of it the Blaupunkt designers decided to write the data into EEPROM after each minimum step of control (each regulator step) but not after at least the whole user control. So if there are for example 32 steps from the volume minimum to its maximum, the microcontroller will accomplish 32 "write EEPROM cycles" during the changing from the volume minimum to maximum. Let us suppose that an average user changes the volume level by 5 steps and the EEPROM resource is not 10000 but for example 50000 cycles. It is easy to count that the microcontroller will "die" after 10000 times of the volume changing (or after 2-3 years if we suppose the volume is changed 10 times a day).
We have located this volume controlling and "slowly dying" EEPROM cell in the 01A8h microcontroller internal address space. It is easy to make sure of extra EEPROM cycle records, checking the output VPP1 voltage (EEPROM charge pump) during for example the volume changing.
The 01A8h cell begins "to forget" the data when the volume control EEPROM resource is exhausted. It becomes apparent as the autoradio turns on with an absolutely casual volume level and the control process becomes unpredictable. At first the volume level malfunctions can be seen at low temperatures only and the operating becomes normal with the device heating. But the EEPROM molecular destruction process occurs with each volume knob turning, so in several weeks or months the problems will take place independently of the device temperature. The further usage of the fault system will cause the failure of cells nearby and the device can be completely out of operation.
You can the Blaupunkt autoradio models with such software error see in the following table:
Autoradios Part number
AUDI Chorus 7 646 243 380 ***
AUDI Chorus *** 4B0 035 152A
AUDI Chorus A8 7 647 243 380
AUDI Chorus M4 7 648 245 380 4B0 035 152B
AUDI Concert 7 646 248 380 4B0 035 186
AUDI Concert A8 7 647 248 380 ***
AUDI Concert M4 7 648 247 380 4B0 035 186C
AUDI Concert M4 7 646 248 380 4B0 035 186B
AUDI Concert TT
AUDI Concert NAV 7 647 247 380
The full model name is usually marked on the right autoradio side.
Of course this error could not be ignored and the AUDI Chorus model production was just stopped when they became to fail on a mass scale. The AUDI Concert models (mentioned above) were also taken out of production but replaced with the AUDI ConcertPlus ones, which didn't have such a problem.
It is very easy to diagnose this defect. If you see the fault of all the controls ("Volume", "Balance", "Fader", "Treble", "Bass" , it just means that the control knob is out of order. If the problems take place with the volume control only (all the other controls operate well), it indicates that the EEPROM microcontroller has worn out and you have to replace the chip.
To liquidate the recurrence of this failure after the microcontroller replacement we continued our investigation. We managed to unassemble the internal program of the MC68HC05 microcontroller, which is used in these autoradio models. All the operations with the 01A8h cell were located. Then the program was changed, and as a result all these EEPROM cell operations were successfully readdressed to the random-access memory (RAM), which resource is unlimited. Now we buy the "clean" one-time-programmable microcontrollers and program them with the object code of the revised program. After the assemblage of the reprogrammed microcontroller to the autoradio the recurrence of volume control problems is absolutely out of question! The improved program operation can be easily checked by the microcontroller output VPP1 voltage during the volume level changing.
We didn't change the Balance, Fader, Treble and Bass controls. Because they are not used very often and this EEPROM cells resource (as we estimate) is several times bigger than the possible period of autoradio usage.
In conclusion. Be careful! We know about a lot of cases when some dishonourable "specialists" fix the worn EEPROM chip by its heating. Heating can prolong the term (may be for some weeks) but is not able to solve the problem completely. The real fixing is only the microcontroller replacement with the one, programmed with the improved software.
_______________________________________
Reparatii tv !
tel.0729346286
|
|
| pus acum 16 ani |
|
paun_nl
Administrator
Din: alexandria
Inregistrat: acum 17 ani
Postari: 2718
|
|
VAG CD Wechsler Simulator - Teststatus
(zuletzt geändert 11.03.2008)
--------------------------------------------------------------------------------
Radio / CDC / Fahrzeug-Kombinationen, in denen der Simulator schon getestet, bzw. erfolgreich eingesetzt wurde:
Fahrzeug Radio / Navi
(Click auf das Modell zeigt ein Bild)
Kfz. Hersteller Nr.
Radio Hersteller Nr. CDC
(Click auf das Modell zeigt ein Bild)
Kfz. Hersteller Nr.
CDC Hersteller Nr. Funktion ok ?
Ford Galaxy/2001
Seat Ibiza/2004
VW Bora/2002
VW Golf/1999-2005
VW Passat/2001-2005
VW Sharan/1998-2003
VW T4/1999-2002 VW MCD
1B0 035 191 X
1J0 035 191 A
1J0 035 191 C
Blaupunkt 7 612 001 377
(Version mit stehendem Logo) VAG 6-fach (Panasonic)
1J6 035 111
Matsushita CX-CV1820LH ja
alle VW Modelle/2004 VW MCD
1J0 035 191 C
Blaupunkt 7 612 001 506
(Nur Version mit drehendem Logo) keiner ja
für
"CDC-Emu"
"CDC-Emu Car-PC"
nein
für
"CDC-Emu AJB"
VW Bora 2004
VW Golf/1998
VW T4/2002 VW MFD
3BO 035 191 A
3B0 035 191 D
Blaupunkt 7 612 001 021 keiner ja
Audi A3/2002-2004
Audi A4/2001
Audi A6 Avant/2001 Audi Symphony II
8L0 035 195 HX
8E0 035 195
8E0 035 195 M
Panasonic keiner ja
Audi A3/2002-2005
Audi A4/2001-2004
Audi A6/2002-2003 Audi Concert II
4B0 035 186 G
8E0 035 186
8E0 035 186 D
8E0 035 186 L
8E0 035 186 N
8E5 ONC 1447451
8P0 035 186 C
8P1 BLC ???
8L 740 012
Grundig keiner ja
VW Golf/1995
VW Passat/1995-1997
VW Polo/1994 VW Gamma IV
3B0 ??? 186
1H0 035 186
Philips keiner ja
VW Bora/2001
VW Golf/2004
VW Passat/1997-2004
VW Polo/2001
VW Sharan/2004
VW T4/1999 VW Gamma V
1J0 035 186 B
1J0 035 186 C
1J0 035 186 D
1J0 035 186 E
7D0 035 186 keiner ja
VW Golf IV/2003 Beta IV keiner ja
Audi A4/1990
VW Bora/2000-2003
VW Golf/1998-2002
VW Lupo/1999-2000
VW Passat/1998-2002
VW Polo/2003
VW Sharan/2002 VW Beta V
2X0 562 901
6X0 035 152 B
6X0 035 152 C
Blaupunkt 7 640 203 360
1J0 035 152 B
1J0 035 152 E
Philips keiner ja
VW T5/2004 VW RN-S2
7H0 035 191
Blaupunkt 7 612 002 018 keiner ja
Audi A4/1999
Audi A6/1998-2001 Audi Navi Plus
4B0 035 192 H
8D0 035 192 D
Blaupunkt 7 612 001 004 Audi 6-fach (Panasonic)
4B0 035 111 A
Panasonic CX-DP9061
Panasonic CX-DP9060 ja
Audi A2/2002-2003
Audi A3/2001-2003
Audi A4/2001-2004 Audi Chorus II
8Z0 035 152 A
8Z0 035 152 D
8E0 035 152
8E0 035 152 G
Grundig keiner ja
VW New Beetle (europ. Version)/2004
VW New Beetle (USA Version)/1998 New Beetle Radio
keine Angabe vorhanden keiner ja
Audi A3/1999
Audi A6/1997-1998
Audi S8/1997
Audi TT/2000 Audi Concert I
4B0 035 186
4B0 035 186 A
4B0 035 186 B
Blaupunkt 7 647 249 380
Panasonic
8L0 035 186 A
Panasonic
4B0 035 186 D
Bose keiner ja
(auf Atmel 90S2313
bis SW V2.3)
keine Unterstützung mehr
ab SW V2.4
Skoda Octavia/2004 Skoda Symphony
1U0 035 256 E
Technisat keiner ja
- VW Single DIN CD-Player
1J0 035 119 BX
Panasonic keiner ja
für
"CDC-Emu"
nein
für
"CDC-Emu AJB"
und
"CDC-Emu Car-PC"
VW Polo VW RCD200
6Q0 035 152
Blaupunkt 8 157 644 235 360 keiner nein
(nicht nach eigenem Test)
VW Caddy/2005
VW Touran/2004-2005 VW RCD300
1K0 035 186L
Blaupunkt
1K0 035 186 J
1K0 035 186 L
Grundig keiner ja
- Audi Symphony I
8D0 035 195 keiner ja
Seat Aura V3
1M0 035 186 C
Grundig keiner ja
für
"CDC-Emu"
"CDC-Emu Car-PC"
nein
für
"CDC-Emu AJB"
Seat Leon/2004-2005 Aura CD
1M0 035 186 K
Grundig keiner ja
für
"CDC-Emu"
"CDC-Emu Car-PC"
nein
für
"CDC-Emu AJB"
Seat Ibiza/1999 Seat Soundsystem 2 keiner nein
(nicht nach eigenem Test)
Seat Altea/2005 Seat CD3
5P1 035 186 keiner ja
für
"CDC-Emu"
"CDC-Emu Car-PC"
nein
für
"CDC-Emu AJB"
- Skoda Stream
keine Angabe vorhanden keiner ja
für
"CDC-Emu"
"CDC-Emu Car-PC"
nein
für
"CDC-Emu AJB"
Skoda Fabia/2007 Skoda Symphony CD
6Y0 035 156 E keiner ja
für
"CDC-Emu"
"CDC-Emu Car-PC"
nein
für
"CDC-Emu AJB"
Weitere Modelle (nur VAG: Audi, VW, Skoda, Seat) können ggf. nach Rücksprache implementiert werden, wozu ich allerdings ein Radio zu Testzwecken benötige (bitte hierzu einfach ein E-Mail an mich schicken).
_______________________________________
Reparatii tv !
tel.0729346286
|
|
| pus acum 15 ani |
|
paun_nl
Administrator
Din: alexandria
Inregistrat: acum 17 ani
Postari: 2718
|
|
audi chorus 2
8E0 035 152
auz2z2b2839461
rog frumos un dump cu cod verificat [nu acela cu cod 0650]
multumesc mult!
_______________________________________
Reparatii tv !
tel.0729346286
|
|
| pus acum 15 ani |
|
|
MMC
Small handyman
Inregistrat: acum 16 ani
Postari: 9
|
|
Renault nr. 22DS229/62 ( e de pe un Logan )
T00158
RN229F30122737
Un cod , sau un damp fara .
multumesc !
|
|
| pus acum 15 ani |
|
paun_nl
Administrator
Din: alexandria
Inregistrat: acum 17 ani
Postari: 2718
|
|
MMC a scris:
Renault nr. 22DS229/62 ( e de pe un Logan )
T00158
RN229F30122737
Un cod , sau un damp fara .
multumesc ! |
vezi ca trebui sa te loghezi
_______________________________________
Reparatii tv !
tel.0729346286
|
|
| pus acum 15 ani |
|
|
MMC
Small handyman
Inregistrat: acum 16 ani
Postari: 9
|
|
RENAULT 22DS229/62
-am scris memoria cu dampul trimis si nu mai cere cod , dar acum afiseaza SPEECH cind il pornesc si nu mai ia nici o comanda
|
|
| pus acum 15 ani |
|
paun_nl
Administrator
Din: alexandria
Inregistrat: acum 17 ani
Postari: 2718
|
|
MMC a scris:
RENAULT 22DS229/62
-am scris memoria cu dampul trimis si nu mai cere cod , dar acum afiseaza SPEECH cind il pornesc si nu mai ia nici o comanda |
cred ca nu ai lipit bine mem. dumpul e verificat
_______________________________________
Reparatii tv !
tel.0729346286
|
|
| pus acum 15 ani |
|
paun_nl
Administrator
Din: alexandria
Inregistrat: acum 17 ani
Postari: 2718
|
|
FORD 6000CDRDS EON
Cark-91 Wiring
RED(2A Fuse) +12V Permanent 12V supply Connect to battery positive (12V).
BLACK GND Negative Ground Connect to a good negative ground.
BLUE(1A Fuse) IGNS Ignition Sense Connect to positive voltage from
ignition. If not available, connect to RED. If connected to ignition
phone will automatically power up when key is turned on and will be
automatically powered down (if no key is pressed) when the key is turned
off. (NOT USED ON NOKIA 6310i)
YELLOW XCRM Car Radio Mute Connects to mute wire on car radio (if
available). This wire goes to 0v when in a call and if the car radio
supports it, will mute it. Max. current 200mA can be used to drive a
relay (or several) to shutdown the car radio or car speakers.
GREEN(1A Fuse) AMC Antenna Motor Control Connects to auto-antenna motor
(if available). Do not connect this wire to the normal antenna. This
wire outputs +12V when the phone is on to make the motor control raise the
antenna and to 0V when phone is not connected or powered down. Max.
current output 200mA.
6000CD Wiring and connectors
Connector A
1 battery
2 illumination-
3 ignition
4 illumination+
5 vehicle alarm
6 ground
7 switched A+/Antenna
8
Connector C
1 ACP+
2 ACP-
3 parking aid mute
4 phone mute
5 ground/phone shield
6 AVC
7
8 phone audio #1
9 phone audio #2
10 clock select
11 analogue remote #1
12 analogue remote #2
13 SCP+
14 SCP-
15 NVA mute
16 NVA #1
17 NVA #2
Connector B (speakers)
1 left front+
2 left front-
3 left rear+
4 left rear-
5 right front+
6 right front-
7 right rear+
8 right rear-
Multi Changer CD - Shuttle
1 ACP+
2 ACP shield
3 ground
4 N/C
5 left audio+
6 right audio+
7 ACP-
8 ACP enable (CDENABLE)
9 CD power (battery unfused)
10 audio shield
11 left audio-
12 right audio-
_______________________________________
Reparatii tv !
tel.0729346286
|
|
| pus acum 15 ani |
|
paun_nl
Administrator
Din: alexandria
Inregistrat: acum 17 ani
Postari: 2718
|
|
salut!
blaupunkt GMBH fiat palio cc clok
815bp237843736093
7642378316
e1 021614
i-am bagat codul 5513 si nu-l primeste
postez si dumpul ,
rog daca aveti un dump cu cod!
multumesc anticipat!
_______________________________________
Reparatii tv !
tel.0729346286
|
|
| pus acum 15 ani |
|
|
kamaz123
Small handyman
Inregistrat: acum 12 ani
Postari: 1
|
|
Am un blaupunkt de pe masina golf 3 abia cumparata si am schimbat bateria si cere codul (SAFE), vanzatorul nu mi-a dat nici un cod , l-am sunat si nu stie
Pe aparat scrie asa
Blaupunct
VWZ1Z1T7124366
7 644 840 060
ALPHA CC
1H0 035 156-A
MADE IN GERMANY
Daca trebuie citit(inlocuit) dump-ul cum se face?..ce interfata am nevoie ?...unde se conecteaza aceasta (pini microcontroler)?....care e procedura ?...unde gasesc informatii?
Am cunostinte despre microcontrolere si electronica .
In speranta ca ma veti ajuta VA MULTUMESC
Modificat de kamaz123 (acum 12 ani)
|
|
| pus acum 12 ani |
|
paun_nl
Administrator
Din: alexandria
Inregistrat: acum 17 ani
Postari: 2718
|
|
aveti aici un bin
_______________________________________
Reparatii tv !
tel.0729346286
|
|
| pus acum 12 ani |
|
|
gabioh
Small handyman
Inregistrat: acum 9 ani
Postari: 2
|
|
Am si eu nevoie de un COD daca puteti sa ma ajutati.
Este un
Blaupunkt-Herke
Audi Concert M4
Radio nr. 014AUZ1Z3X6074889
7 648 247 380
AUZ1Z3X6074889
4BO 035186 C
Va multumesc anticipat!
|
|
| pus acum 9 ani |
|
paun_nl
Administrator
Din: alexandria
Inregistrat: acum 17 ani
Postari: 2718
|
|
gabioh a scris:
Am si eu nevoie de un COD daca puteti sa ma ajutati.
Este un
Blaupunkt-Herke
Audi Concert M4
Radio nr. 014AUZ1Z3X6074889
7 648 247 380
AUZ1Z3X6074889
4BO 035186 C
Va multumesc anticipat! |
trebui citita memoria smd
_______________________________________
Reparatii tv !
tel.0729346286
|
|
| pus acum 9 ani |
|
|
gabioh
Small handyman
Inregistrat: acum 9 ani
Postari: 2
|
|
paun_nl multumesc pt raspuunsul tauDar spune-mi te rog si cum pot citi memoria smd.
Toate cele bune
|
|
| pus acum 9 ani |
|
bughiudan
Moderator
 Din: Oradea
Inregistrat: acum 13 ani
Postari: 392
|
|
Cu un programator AD-MEM01(hardware) si un (software) program gen Pony Prog,de exemplu....!!! Mai sant si altele!!!
|
|
| pus acum 9 ani |
|
paun_nl
Administrator
Din: alexandria
Inregistrat: acum 17 ani
Postari: 2718
|
|
buna ziua!
rog si eu codul la acest r-cd
renault AGC-1220RF-A part code:281155052r
supplier code: 269 779
Cod bare 281155052rtw792
E9 10r-93,6412
multumesc anticipat!
_______________________________________
Reparatii tv !
tel.0729346286
|
|
| pus acum 9 ani |
|
